i1Photo Pro 3 Plus
攝影師的色彩管理系統
i1Photo Pro 3 Plus專為在RGB列印工作流程中追求準確、色彩精准的攝影師而設計。從色彩採集、呈現到列印，該校色儀可快速有效地提升色彩校正和配置的準確度和一致性。它結合了先進的軟硬體，可為攝影專業人員提供無與倫比的專業級色彩管理。
此外，該校色儀可對多台顯示器進行色彩校正和匹配，既可以連接至一台電腦上的最多4台顯示器，也可以連接至不同電腦的不限數量的顯示器，實現一致的色彩呈現。
優點
- 採用8mm大孔徑，改善色彩準確度和可重複性。
- 配備偏光濾鏡，可針對光亮和帶紋理的照片介質創建更精確的色彩描述檔。
- 附帶的i1Profiler軟體具有基本和高級兩種模式，可用於專業級校色和配置的顯示器（包括針對影片製作工作流的預設置）、投影機、掃描器和RGB印表機。
- 內置ColorChecker相機校準軟體與導表，可生成在Raw工作流程中出色運行的自訂相機色彩描述檔，即使在異常的人工照明條件下依舊發揮很好的作用。
- 通過PANTONE®色彩管理器輕鬆採集和管理專色，讓您的PANTONE色庫與調色板創建和樣本橋接軟體保持同步。
TOP
Color Profiling Without Limitations.
i1Pro 3 Plus for Imaging
Digital printing is becoming more mainstream. With the ability to measure larger print materials and polarize, the i1Pro 3 Plus can reduce color variability on many signage substrates, including vinyl, fabrics, transparent films, corrugated, and back-lit for the highest level of color accuracy and repeatability. The optional polarization feature reduces reflections in shadows and highlights, yielding more pleasing color reproduction.
i1Pro 3 Plus for Print
Whether printing flexo, Gravure, or digital, grand- and wide-format, printers must profile and linearize with each substrate to achieve the highest level of color accuracy. Using new targets and standards, the i1Pro 3 Plus reduces color measurement variability to achieve correct calibration and create ICC profiles. It also integrates with the i1iO table for fast, repeatable, and automated production color on a variety of unique print and packaging substrates, including thin films, labels, cardboard, fabric, and plastics.
i1Pro 3 Plus for Textiles
When digitally printing textiles, it is crucial to linearize and profile each substrate to achieve the highest level of color accuracy. The i1Pro 3 Plus was designed to calibrate and profile a variety of textile substrates, including organic, synthetic, weaves, and sublimation sheets. With innovative design, the i1Pro3 eliminates chromatic highlights for better profiles that translate to fast production with less wasted time and materials.
Enables profiling of a broad range of material substrates and surfaces with a new larger 8mm aperture: industrial materials, packaging and printing, signage, textiles, ceramics, monitors and displays.
Reduces color measurement variability with optional polarization capabilities, helping to correct for unique material qualities.
Supports emission scanning for backlit textiles, films, and other materials used in displays and signage.
Automation and Calibration: Simplified.
Achieves correct calibration and creates ICC profiles with new targets and standards for more accurate color on a variety of substrates.
When combined with i1iO, the i1Pro 3 Plus optimizes automated file creation for faster profiling and less rework.
TOP
i1Pro 3 Plus for Imaging
Digital printing is becoming more mainstream. With the ability to measure larger print materials and polarize, the i1Pro 3 Plus can reduce color variability on many signage substrates, including vinyl, fabrics, transparent films, corrugated, and back-lit for the highest level of color accuracy and repeatability. The optional polarization feature reduces reflections in shadows and highlights, yielding more pleasing color reproduction.
i1Pro 3 Plus for Print
Whether printing flexo, Gravure, or digital, grand- and wide-format, printers must profile and linearize with each substrate to achieve the highest level of color accuracy. Using new targets and standards, the i1Pro 3 Plus reduces color measurement variability to achieve correct calibration and create ICC profiles. It also integrates with the i1iO table for fast, repeatable, and automated production color on a variety of unique print and packaging substrates, including thin films, labels, cardboard, fabric, and plastics.
i1Pro 3 Plus for Textiles
When digitally printing textiles, it is crucial to linearize and profile each substrate to achieve the highest level of color accuracy. The i1Pro 3 Plus was designed to calibrate and profile a variety of textile substrates, including organic, synthetic, weaves, and sublimation sheets. With innovative design, the i1Pro3 eliminates chromatic highlights for better profiles that translate to fast production with less wasted time and materials.
Why Choose i1Pro 3 Plus?
Materially Diverse.
Enables profiling of a broad range of material substrates and surfaces with a new larger 8mm aperture: industrial materials, packaging and printing, signage, textiles, ceramics, monitors and displays.
Reduces color measurement variability with optional polarization capabilities, helping to correct for unique material qualities.
Supports emission scanning for backlit textiles, films, and other materials used in displays and signage.
Automation and Calibration: Simplified.
Achieves correct calibration and creates ICC profiles with new targets and standards for more accurate color on a variety of substrates.
When combined with i1iO, the i1Pro 3 Plus optimizes automated file creation for faster profiling and less rework.
TOP
| 項目 | 說明 |
| Aperture | Measurement aperture: 8 mm (0.31”) diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed) |
|---|---|
| Available Disk Space | 2GB |
| Calibration | Manual on external ceramic white reference (included) |
| Communication Interface | USB 1.1 |
| Connectivity | Powered USB port |
| Dimensions (length, width, height) | i1Pro device: 162 mm x 69 mm x 64 mm (6.4” x 2.7” x 2.5”) |
| Display Resolution | 1024x768 pixels or higher |
| Experience Level | Intermediate to Advanced |
| Humidity | 30 to 85% RH (non-condensing) |
| Illumination Spot Size | 12 mm (0.47”) |
| Inter-Instrument Agreement | 0.4 ∆E00* average, 1.0 ∆E00* max. (deviation from X-Rite manufacturing standard at a temperature of 23ºC (73.4ºF) on 12 BCRA tiles (D50, 2º)) |
| Internet Connection | Required for software install, download and automatic update |
| Languages Supported | Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish |
| Light Source | i1Pro3 Plus LED Illumination (including UV) |
| Macintosh | MacOS X 10.11x, 10.12x or 10.13x (with latest upgrades installed) |
| Measurement Conditions |
|
| Measurement Frequency in Scanning Mode | 400 measurements per second |
| Measurement Geometry | 45°:0° ring illumination optics, ISO 13655:2017 |
| Measurement Spot | 8mm (0.315") |
| Media Thickness | 1mm or less |
| Memory | 2GB Minimum |
| Number of Displays Supported per Workstation | Up to 4 |
| Operating Temperature Range | 10°C to 35°C 50°F to 95°F |
| Patch Size | Minimal Patch Size in Scanning Mode: 16 x 16 mm (0.63” x 0.63”) (Width x Height) with sensor ruler 20 x 16 mm (0.79” x 0.63”) (Width x Height) without sensor ruler |
| Photometric Range | 10nm; Sampling interval 3.5nm |
| Processor | MAC: Intel® Core 2 Duo CPU or better; WINDOWS: Intel® Core 2 Duo or AMD Athlon™ XP or better |
| Scan Length | Maximum 515mm (20.28") |
| Scanner Target Support | Yes |
| Scanning Capability | Yes |
| Security | User must have Administrator rights to install and uninstall the application |
| Short Term Repeatability - White | Reflectance: 0.1 ∆E94* (D50,2°, mean of 10 measurements every 3 seconds on white) |
| Spectral Analyzer | i1® technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array |
| Spectral Range | 380 - 730 nm |
| Spectral Reporting | 380 ... 730 nm in 10 nm steps |
| Storage Temperature Range | -20° to 50°C -4° to 122°F |
| Supported Profile Format | ICC version 2, version 4.3, & iccMax |
| User Experience | Choose between a ‘basic’, wizard-driven interface or an ‘advanced’, user-driven interface for highest level professional results |
| Video Card | MAC: Latest drivers for video card installed WINDOWS: Latest drivers for video card installed, dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded |
| Warranty | Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use. |
| Weight | i1Pro device: 285 g (10.1 oz) |
| What's Included? | i1Pro 3 Plus spectrophotometer (measurement device), calibration plate, polarizing filter, ambient light measurement head, monitor holder, positioning target, XL scanning ruler, XL backer board, USB cable. i1Profiler v3.x software for monitor profiling plus QA for monitors and printers, PANTONE Color Manager software, ColorTRUE mobile app download from iTunes® App Store. |
| Windows | Windows 7, 8, 8.1, 10 (with latest Service Pack installed) |

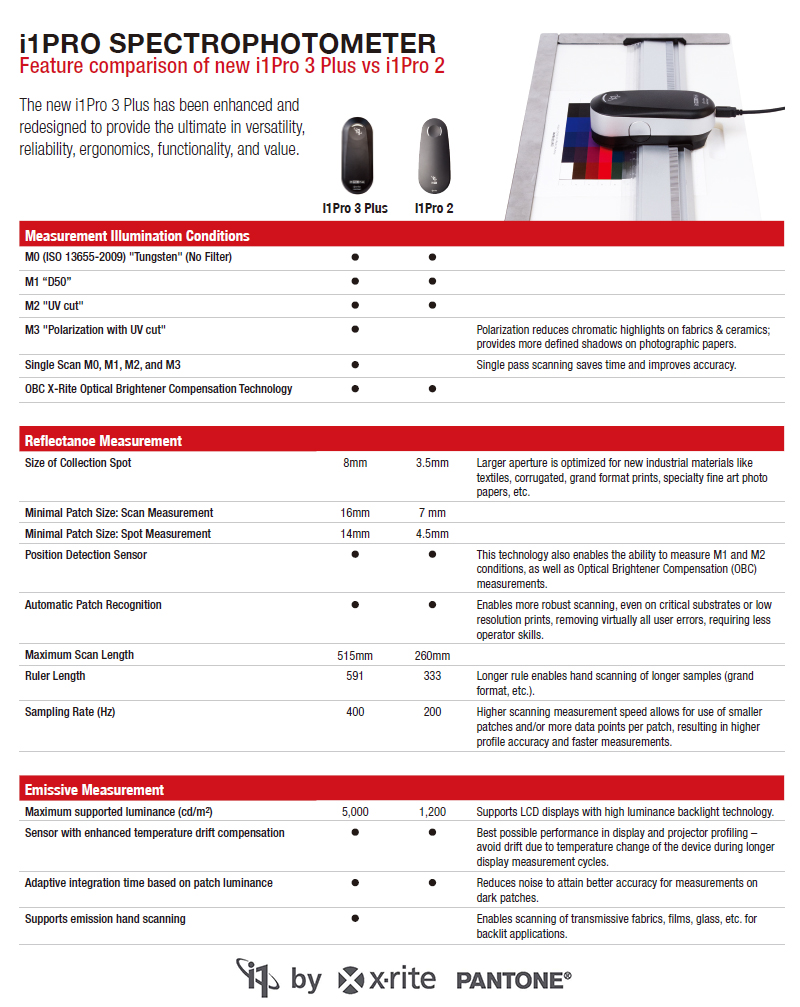

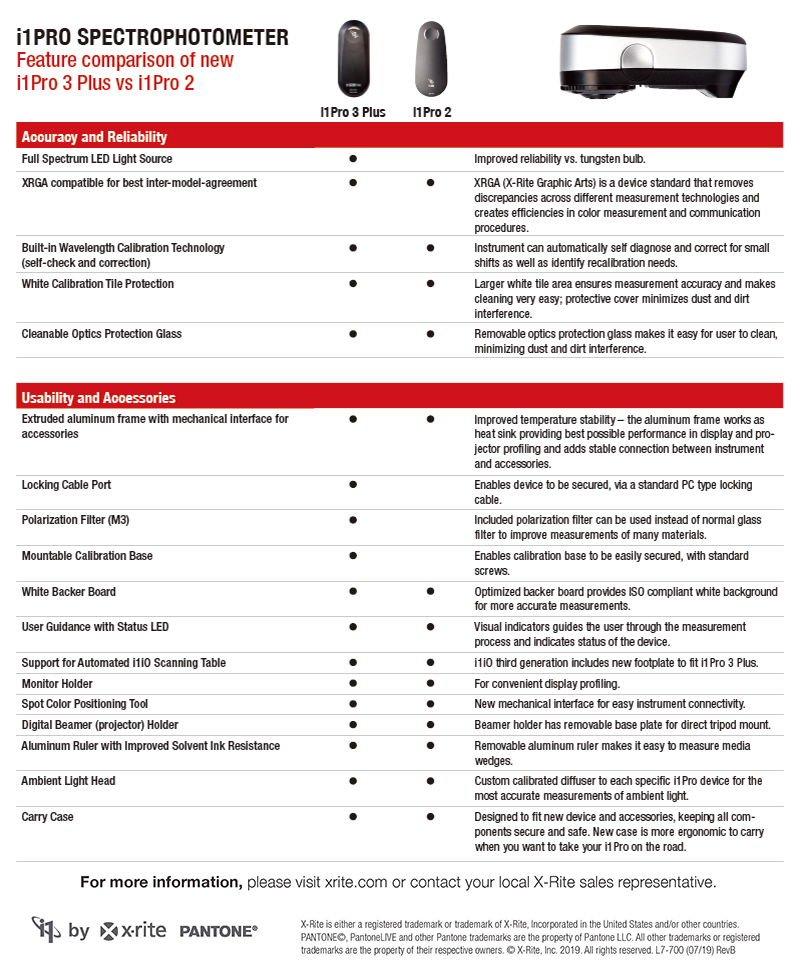

i1Pro3 Plus與i1Pro2規格比較
TOP- i1Pro 3 Plus spectrophotometer (measurement device)
- calibration plate
- polarizing filter
- ambient light measurement head
- monitor holder
- positioning target
- XL scanning ruler
- XL backer board
- USB cable

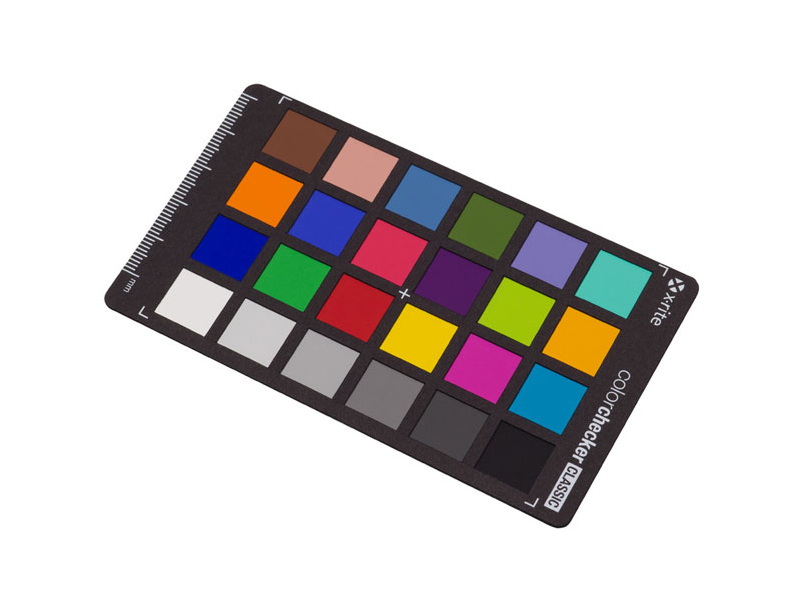

- ColorChecker Classic

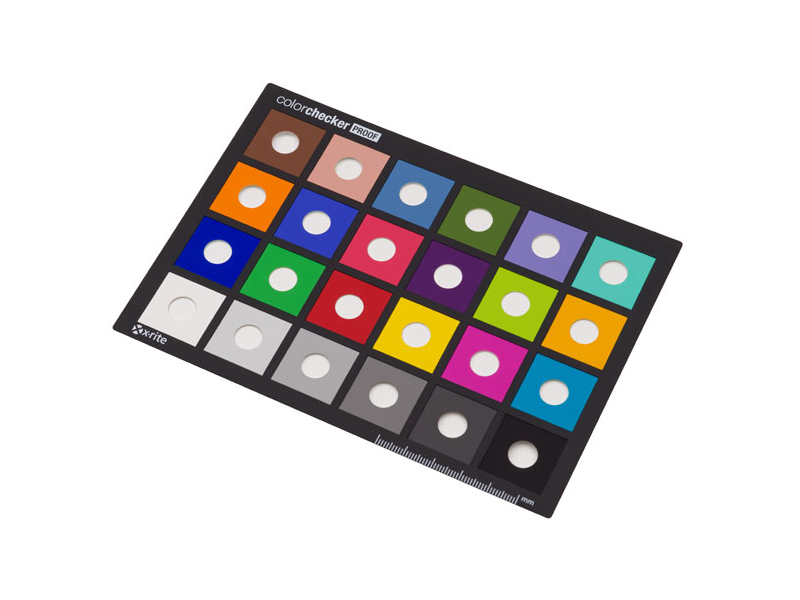

- ColorChecker Proof
- i1Profiler v3.x software for monitor profiling plus QA for monitors and printers
- PANTONE Color Manager software
- ColorTRUE mobile app download from iTunes® App Store
TOPi1Pro 3 Plus for Imaging/Print/Textiles
|
|
|
||||||
|
i1Pro3 Plus for Imaging(英文)
2.04 mb |
i1Pro3 Plus for Print (英文) 1.81 mb |
i1Pro3 Plus for Textiles(英文)
1.76 mb |
i1Pro 3 Plus技術規格
|
|
|
|||||
|
i1Pro 3 Plus技術規格 (英文) 1.07 mb |
i1Pro 3 Plus與i1Pro 2 規格比較(英文) 403 kb |
